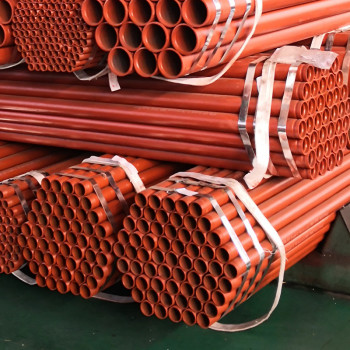

Fire Sprinkler Pipe with Red Color Painted
- FOB Price
US $850.025 - 25 ton
- group name
- Threaded End Steel Pipe
- Min Order
- 25 ton
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Painted NPT Threaded Fire Sprinkler Carbon Steel Pipe
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Fri, 04 Apr 2025 09:27:18 GMT
Paramtents
Technic Standard ASTM A53 , ASTM A795
Pipe Length 5.8m, 6m, 6.4m, 7.3m, 19ft, 20ft, 21ft, 24ft
Other surface finished painted
Other surface finished galvanized and then painted red color
Other surface finished epoxy coated
Material carbon steel
Packging & Delivery
-
Min Order25 ton
Briefing
ASTM A795 A53 Painted NPT Threaded Fire Sprinkler Carbon Steel Pipe
Detailed
Painted NPT Threaded Fire Sprinkler Carbon Steel Pipe Information
Painted NPT Threaded Fire Sprinkler Pipe is a carbon steel pipe specifically designed for fire protection pipeline systems. It is coated with anti-corrosion coating (usually RAL3000 painted) to extend its service life and adopts NPT (National Pipe Thread) standard thread pipe ends to ensure sealing and quick installation. It complies with fire safety standards such as NFPA, has high strength, high pressure resistance, and corrosion resistance, and is suitable for fire pipe network systems in commercial and industrial buildings.
|
Commodity
|
Red fire sprinkler ERW carbon steel pipes |
|
Usage | construction, building material, fire sprinkler steel pipeline | |
|
Size
|
1/2''-12'' (round hollow)
|
|
Wall thickness | sprinkler pipe schedule 10, sprinkler pipe schedule 40 | |
Length | 5.8m, 6m or cut into other length according to PI | |
Certificates international standard | ISO 9000-2001, UL certificate | |
Standards | ASTM A795, ASTM A53, GB/T3091, etc | |
|
Technique
|
Welded
|
|
Surface | Galvanized or Painted to prevent the rust | |
Pipe ends | Plain or threaded with sockets/coupling and plastic cap or grooved with caps | |
|
Packing
|
In bundles, or request.
|
|
Marking | As requested in PI, such as "UL LISTED YOUFA SCH10 / SCH40" | |
ASTM A795 Fire Sprinkler Pipe Size Chart in mm
NPS | DN | Outer Diameter (mm) | fire fighting pipe schedule 10 | fire fighting pipe schedule 40 | ||||
Wall Thickness (mm) |
Unit Weight (kg/m) | Test Pressure (kpa) | Wall Thickness
(mm) | Unit Weight
(kg/m) | Test Pressure (kpa) | |||
|
1/2"
|
15
|
21.3 |
-
|
- | - | 2.77 | 1.27 | 4800 |
|
3/4"
|
20
|
26.7 | 2.11 |
1.28 | 4800 | 2.87 | 1.69 | 4800 |
1" | 25 | 33.4 | 2.77 | 2.09 | 4800 | 3.38 | 2.50 | 4800 |
1-1/4" | 32 | 42.2 | 2.77 | 2.69 | 6900 | 3.56 | 3.39 | 6900 |
1-1/2" | 40 | 48.3 | 2.77 | 3.11 | 6900 | 3.68 | 4.05 | 6900 |
2" | 50 | 60.3 | 2.77 | 3.93 | 6900 | 3.91 | 5.45 | 6900 |
2-1/2" | 65 | 73 | 3.05 | 5.26 | 6900 | 5.16 | 8.64 | 6900 |
3" | 80 | 88.9 | 3.05 | 6.46 | 6900 | 5.49 | 11.29 | 6900 |
4" | 100 | 114.3 | 3.05 | 8.37 | 8300 | 6.02 | 16.09 | 8300 |
5" | 125 | 141.3 | 3.40 | 11.58 | 8300 | 6.55 | 21.79 | 8300 |
6" | 150 | 168.3 | 3.40 | 13.85 | 6900 | 7.11 | 28.29 | 8300 |
8" | 200 | 219.1 | 4.78 | 25.26 | 5500 | sch30 7.04 | 36.82 | 8300 |
10" | 250 | 273.1 | 4.78 | 31.62 | 4800 | sch30 7.8 | 51.05 | 6900 |
Pls don't hesitate to contact us if you need other fire sprinkler pipe material. | ||||||||
Coated Fire Sprinkler Pipes Surface and Heads
Surface: Painted Ral3000 or other color code
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: NPT threaded with coupling and cap
Surface: Painted Ral3000 or other color code
Pipe Ends: NPT threaded with coupling and cap
ASTM A795 Fire Protection Pipes Test and Quality Control
Chemical Composition |
for Type E (electric-resistance-welded pipe)
|
|||
|
C, Max, %
|
Mn, Max, % |
P, Max, %
|
S, Max, %
|
|
|
Grade A
|
0.25
|
0.95 |
0.035
|
0.035
|
|
Grade B
|
0.30
|
1.20 |
0.035
|
0.035
|
Mechanical Properties |
for thickness sch10 and sch40
|
||
|
Tensile strength, min [MPa]
|
Yield strength, min [MPa]
|
Elongation, min, %
|
|
|
Grade A
|
330
|
205
|
24
|
|
Grade B
|
415
|
240
|
24
|
Hydrotest:
The hydrostatic test shall be applied, without leakage
through the pipe wall, to each length of pipe.
Coating, Lengths, Dimensions:
During and after production, 4 QC staffs with more than 5 years experience inspect products in random.
