Full Sizes groove end pipe Fire Sprinkler pipe
- FOB Price
US $850.05 - 25 ton
- group name
- Grooved End Steel Pipe
- Min Order
- 5 ton
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 25 Dec 2024 02:32:38 GMT
Paramtents
Technic Standard ASTM A53 , ASTM A795
Pipe Length 5.8m, 6m, 6.4m, 7.3m, 19ft, 20ft, 21ft, 24ft
Other surface finished painted red color RAL3000 ， Galvanized and then painted red color, black color painted, epoxy coated, anti-rust oiled , or bare no surface treatment
About surface finished the surface finished can be specified by customers
Material Carbon Steel
Packging & Delivery
-
Min Order5 ton
Briefing

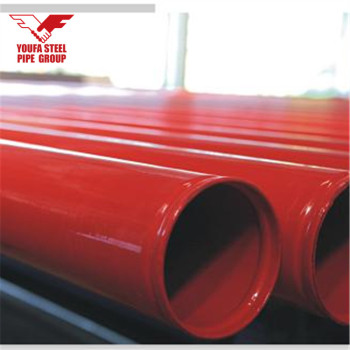

Rolled Groove End Steel Pipe for Fire Sprinkler System with Full Sizes
Detailed
Rolled Groove End Steel Pipe General Information
Key Features of Rolled Groove End Steel Pipes:
Quick Installation: The grooved connection allows for rapid assembly and disassembly, which can significantly reduce installation time and labor costs.
Flexibility: Grooved systems can accommodate movement, expansion, and contraction, which is beneficial in buildings where these factors are present.
Durability: Steel pipes are robust and can handle high pressures, making them suitable for fire suppression systems.
Corrosion Resistance: When coated or lined properly, steel pipes can offer good resistance to corrosion, enhancing the longevity of the system.
Wide Range of Sizes: These pipes are available in various diameters and lengths to suit different design and flow requirements in fire sprinkler systems.
Common Sizes:
The sizes typically range from 1 inch to 12 inches in diameter, with the most common sizes being:
1 inch (25 mm)
1.25 inches (32 mm)
1.5 inches (38 mm)
2 inches (50 mm)
2.5 inches (65 mm)
3 inches (80 mm)
4 inches (100 mm)
6 inches (150 mm)
8 inches (200 mm)
10 inches (250 mm)
12 inches (300 mm)
Applications:
Commercial Buildings: Offices, shopping malls, and other commercial properties.
Residential Buildings: High-rise apartments and housing complexes.
Industrial Facilities: Warehouses, manufacturing plants, and storage facilities.
Institutional Buildings: Hospitals, schools, and government buildings.
Standards and Certifications:
These pipes often adhere to various standards and certifications to ensure they meet safety and performance requirements, such as:
ASTM A795: Standard for black and hot-dipped galvanized welded and seamless steel pipe.
FM Approved: Ensuring the pipe meets fire safety standards.
UL Listed: Certification for fire safety compliance.
|
Commodity
|
Fire sprinkler ERW carbon steel pipes |
|
Usage | construction, building material, fire sprinkler steel pipeline | |
Length | 5.8m, 6m or cut into other length according to PI | |
Certificates international standard | ISO 9000-2001, UL certificate | |
Standards | ASTM A795, ASTM A53, GB/T3091, etc | |
|
Technique
|
Welded
|
|
Surface | Galvanized or Painted to prevent the rust | |
Pipe ends | Plain or threaded with sockets/coupling and plastic cap or grooved with caps | |
|
Packing
|
In bundles, or request.
|
|
Marking | As requested in PI, for example "UL LISTED YOUFA SCH10 / SCH40" | |
ASTM A795 ERW Carbon Steel Tube Standard Specifications Reference
NPS | DN | Outer Diameter(mm) | Schedule 10 | Schedule 40 | ||||
Wall Thickness (mm) |
Unit Weight (kg/m) | Test Pressure (kpa) | Wall Thickness
(mm) | Unit Weight
(kg/m) | Test Pressure (kpa) | |||
|
1/2"
|
15
|
21.3 |
-
|
- | - | 2.77 | 1.27 | 4800 |
|
3/4"
|
20
|
26.7 | 2.11 |
1.28 | 4800 | 2.87 | 1.69 | 4800 |
1" | 25 | 33.4 | 2.77 | 2.09 | 4800 | 3.38 | 2.50 | 4800 |
1-1/4" | 32 | 42.2 | 2.77 | 2.69 | 6900 | 3.56 | 3.39 | 6900 |
1-1/2" | 40 | 48.3 | 2.77 | 3.11 | 6900 | 3.68 | 4.05 | 6900 |
2" | 50 | 60.3 | 2.77 | 3.93 | 6900 | 3.91 | 5.45 | 6900 |
2-1/2" | 65 | 73 | 3.05 | 5.26 | 6900 | 5.16 | 8.64 | 6900 |
3" | 80 | 88.9 | 3.05 | 6.46 | 6900 | 5.49 | 11.29 | 6900 |
4" | 100 | 114.3 | 3.05 | 8.37 | 8300 | 6.02 | 16.09 | 8300 |
5" | 125 | 141.3 | 3.40 | 11.58 | 8300 | 6.55 | 21.79 | 8300 |
6" | 150 | 168.3 | 3.40 | 13.85 | 6900 | 7.11 | 28.29 | 8300 |
8" | 200 | 219.1 | 4.78 | 25.26 | 5500 | sch30 7.04 | 36.82 | 8300 |
10" | 250 | 273.1 | 4.78 | 31.62 | 4800 | sch30 7.8 | 51.05 | 6900 |
Pls don't hesitate to contact us if you need other sizes. | ||||||||
ERW Carbon Steel Fire Sprinkler Pipes Surface and Pipe Ends
Surface: Painted Ral3000 or other color
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: NPT threaded with coupling and cap
Surface: Painted Ral3000 or other color
Pipe Ends: NPT threaded with coupling and cap
ASTM A795 Fire Sprinkler Pipes Test and Quality Control
Chemical Composition |
for Type E (electric-resistance-welded pipe)
|
|||
|
C, Max, %
|
Mn, Max, % |
P, Max, %
|
S, Max, %
|
|
|
Grade A
|
0.25
|
0.95 |
0.035
|
0.035
|
|
Grade B
|
0.30
|
1.20 |
0.035
|
0.035
|
Mechanical Properties |
for thickness sch10 and sch40
|
||
|
Tensile strength, min [MPa]
|
Yield strength, min [MPa]
|
Elongation, min, %
|
|
|
Grade A
|
330
|
205
|
24
|
|
Grade B
|
415
|
240
|
24
|
Hydrotest:
The hydrostatic test shall be applied, without leakage
through the pipe wall, to each length of pipe.
Coating, Lengths, Dimensions:
During and after production, 4 QC staffs with more than 5 years experience inspect products in random.
