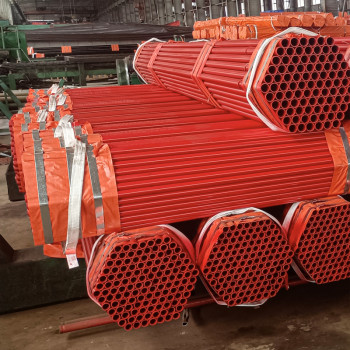

red painted Epoxy Sprinkler fire pipe with ul certificate
- FOB Price
US $850.05 - 25 ton
- group name
- Grooved End Steel Pipe
- Min Order
- 5 ton
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 25 Dec 2024 02:28:43 GMT
Paramtents
Technic Standard ASTM A53 , ASTM A795
Pipe Length 5.8m, 6m, 6.4m, 7.3m, 19ft, 20ft, 21ft, 24ft
Other surface finished painted red color RAL3000 ， Galvanized and then painted red color, black color painted, epoxy coated, anti-rust oiled , or bare no surface treatment
About surface finished the surface finished can be specified by customers
Packging & Delivery
-
Min Order5 ton
Briefing
red painted Epoxy Sprinkler fire pipe with ul certificate
Detailed
Fire Sprinkler Steel Pipe General Product Information
Red-coated epoxy fire sprinkler pipe is used in fire sprinkler systems, and has obtained UL certification. Red coated steel pipe is often used to meet the needs of fire protection systems and is resistant to corrosion, high temperatures and pressure.
UL certification ensures that this pipe meets the strict fire safety and performance standards set by UL. The red epoxy coating not only helps distinguish the pipe's purpose, but also provides additional protection against corrosion, making it more suitable for use in wet environments.
|
Commodity
|
Fire sprinkler ERW carbon steel pipes |
|
Usage | construction, building material, fire sprinkler steel pipeline | |
|
Size
|
1/2''-10'' (round hollow)
|
|
Wall thickness | 1.3mm-10mm | |
Length | 5.8m, 6m or cut into other length according to PI | |
Certificates international standard | ISO 9000-2001, UL certificate | |
Standards | ASTM A795, ASTM A53, GB/T3091, etc | |
|
Technique
|
Welded
|
|
Surface | Galvanized or Painted to prevent the rust | |
Pipe ends | Plain or threaded with sockets/coupling and plastic cap or grooved with caps | |
|
Packing
|
In bundles, or request.
|
|
Marking | As requested in PI, for example "UL LISTED YOUFA SCH10 / SCH40" | |
ASTM A795 ERW Carbon Steel Tube Standard Specifications Reference
NPS | DN | Outer Diameter(mm) | Schedule 10 | Schedule 40 | ||||
Wall Thickness (mm) |
Unit Weight (kg/m) | Test Pressure (kpa) | Wall Thickness
(mm) | Unit Weight
(kg/m) | Test Pressure (kpa) | |||
|
1/2"
|
15
|
21.3 |
-
|
- | - | 2.77 | 1.27 | 4800 |
|
3/4"
|
20
|
26.7 | 2.11 |
1.28 | 4800 | 2.87 | 1.69 | 4800 |
1" | 25 | 33.4 | 2.77 | 2.09 | 4800 | 3.38 | 2.50 | 4800 |
1-1/4" | 32 | 42.2 | 2.77 | 2.69 | 6900 | 3.56 | 3.39 | 6900 |
1-1/2" | 40 | 48.3 | 2.77 | 3.11 | 6900 | 3.68 | 4.05 | 6900 |
2" | 50 | 60.3 | 2.77 | 3.93 | 6900 | 3.91 | 5.45 | 6900 |
2-1/2" | 65 | 73 | 3.05 | 5.26 | 6900 | 5.16 | 8.64 | 6900 |
3" | 80 | 88.9 | 3.05 | 6.46 | 6900 | 5.49 | 11.29 | 6900 |
4" | 100 | 114.3 | 3.05 | 8.37 | 8300 | 6.02 | 16.09 | 8300 |
5" | 125 | 141.3 | 3.40 | 11.58 | 8300 | 6.55 | 21.79 | 8300 |
6" | 150 | 168.3 | 3.40 | 13.85 | 6900 | 7.11 | 28.29 | 8300 |
8" | 200 | 219.1 | 4.78 | 25.26 | 5500 | sch30 7.04 | 36.82 | 8300 |
10" | 250 | 273.1 | 4.78 | 31.62 | 4800 | sch30 7.8 | 51.05 | 6900 |
Pls don't hesitate to contact us if you need other sizes. | ||||||||
ERW Carbon Steel Fire Sprinkler Pipes Surface and Pipe Ends
Surface: Painted Ral3000 or other color
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: NPT threaded with coupling and cap
Surface: Painted Ral3000 or other color
Pipe Ends: NPT threaded with coupling and cap
ASTM A795 Fire Sprinkler Pipes Test and Quality Control
Chemical Composition |
for Type E (electric-resistance-welded pipe)
|
|||
|
C, Max, %
|
Mn, Max, % |
P, Max, %
|
S, Max, %
|
|
|
Grade A
|
0.25
|
0.95 |
0.035
|
0.035
|
|
Grade B
|
0.30
|
1.20 |
0.035
|
0.035
|
Mechanical Properties |
for thickness sch10 and sch40
|
||
|
Tensile strength, min [MPa]
|
Yield strength, min [MPa]
|
Elongation, min, %
|
|
|
Grade A
|
330
|
205
|
24
|
|
Grade B
|
415
|
240
|
24
|
Hydrotest:
The hydrostatic test shall be applied, without leakage
through the pipe wall, to each length of pipe.
Coating, Lengths, Dimensions:
During and after production, 4 QC staffs with more than 5 years experience inspect products in random.
