en39 scaffolding tube 48.3 steel scaffolding pipe
- group name
- Galvanized Steel Pipe
- Min Order
- 25 ton
- brand name
- Youfa Steel Pipe Manufacturer
- model
- en39 scaffolding tube
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:17:54 GMT
Paramtents
Standard BS1139 EN39 gb/t13793
Zinc Coating 200-275g/m2
Steel Grade S235 Q195 Q235 Q355
Type ERW welded
Surface Zinc coating galvanized
Packging & Delivery
-
Min Order25 ton
Briefing
EN39 BS1139 Scaffolding tube 48.3mm 1.5 inch DN40 steel S235
Detailed
Scaffold Carbon Steel GI Pipe Detail Information
|
Size / Diameter
|
1-1/2" (48.3mm)
|
|
|
Wall thickness (W.T.)
|
Type 3 : 3.2mm
Type 4 : 4.0mm |
|
Length | 6.0M, 6.5M, 5.0M, 4.5M, 6.5M, cut into shorter length by customer's requirements | |
Certificates international standard | ISO 9000-2001,CE EN10219 certificate, BV certificate | |
Standards | EN39, BS1139, JIS3444, GB/T13793 | |
Materials | S235GT, S355, STK400, STK500, Q355 Q235 | |
|
Technique
|
ERW Welded
|
|
|
Packing
|

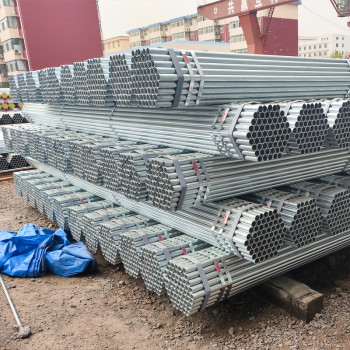

1. Packed by steel strips
2. Woven cloth with 7 slats
3. According to the requirements of customers |
|
Shipment | 1) Container: 26 tons per container for thick wall thickness pipe.
20"container: the max pipe length 5.85 m without caps;
40"container: the max pipe length 5.97 m in two rows.
2) Bulk carrier: no limits on pipe length. | |
Country of origin | China | |
Marking | As requested in PI, for example "EN39 YOUFA 48.3MM X 3.2MM / 4.0MM" | |
Scaffolding Pipe Steel Grade
|
EN39 S235GT
|
|||||||||
|
Chemical Composition %
|
Mechanical Properties |
||||||||
|
C (max.)
|
Si | Mn (max.) | P (max.) | S (max.) |
Al (min.)
|
Yield Strength(min.) MPa | Tensile Strength MPa |
Elongation (min.) %
|
|
|
0.20
|
≤0.05 % (range 1) (≤0.04 % if option 2 is specified) or ≥0.15 %≤0.25% (range 2) | 1.40 | 0.040 | 0.045 |
0.020
|
235 | 340-520 | 24 |
|
BS1139 S235 | |||||||||
C (max.) | Si (max.) | P (max.) | S (max.) | Ni (max.) | Yield Strength(min.)
MPa | Yield Strength(min.)
MPa | Elongation (min.) % | ||
0.20 | 0.30 For steel which is to be protected by hot dip galvanizing, the silicon content shall not exceed 0.05 %. | 0.05 | 0.05 | 0.009 For steel treated with aluminium, the nitrogen content may be increased to a maximum of 0.015 %. | 235 | 340-480 | 24 | ||
Customized Process Type for Scaffolding Pipe
1. Stamping / Embossing
The cost of embossing (the up one) is expensive than stamping (the bottom one). We usually choose stamping on the outside body of pipe. But for scaffold pipes, it is usually embossing.
2. Cut length
Cut gi pipes into shorter length 1m to 4.5m based on customer's requirements
3. Water proof bag / Plastic bag protection
Only pipe ends pvc packaged, only pipe body packaged or all packed.
Galvanized Steel Pipe Test and Quality Control
YOUFA Galvanized steel pipes cover one-third of the Chinese market
How does Youfa guarantee galvanized pipe quality ?
1. Youfa factories source their raw materials for manufacturing steel pipes from well-established and reputable Chinese enterprises such as HBIS, Shougang, Baotou Steel, Xintiangang, Jinxi Steel, and others.
2. Youfa Group has 4 labs with CNAS certificates in our own factories. We promise that before the goods leave the factory, there will be professional quality inspection personnels to conduct on-site inspections of materials, specifications, etc., and take pictures and archive them.
3. During the cargo transportation process, we take photos to record the loading status of the goods.
4. Youfa hot galvanized steel pipes are certified by CE, UL, ISO 9001, ISO 14001.
Youfa Brand Steel Pipe Production Range Details
|
Main Products
|
Size
|
Wall Thickness
|
Production Lines
|
Producing Capacity |
|
ERW steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
13
|
1,000,000 tons per yesr |
|
Hot-dipped galvanized steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
18
|
1,500,000 tons per year |
Square Rectangular steel pipe | 20x20--400x400mm,
20x40--400x600mm | 1.3mm--20mm | 10 | 800,000 tons per year |
Hot-dip galvanized
square / rectangular steel pipe | 20x20--200x200mm,
20x40--250x150mm | 1.5mm--7.5mm | 3 | 250,000 tons per year |
|
Oil casing pipe, SSAW steel pipe
|
219mm-2020mm
|
5.0mm--28mm
|
5
|
1,50,000 tons per year |
Steel-plastic complex
steel pipe | 1/2"--12" | 1.5mm--10.0mm | 9 | 100,000 tons per year |
