UL APPROVED SPRINKLER PIPE SCH40 FULL SIZES
- FOB Price
US $790.01 - 25 ton
- group name
- Grooved End Steel Pipe
- Min Order
- 5 ton
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 20:08:46 GMT
Paramtents
Technic Standard ASTM A53 , ASTM A795
Pipe Length 5.8m, 6m, 6.4m, 7.3m, 19ft, 20ft, 21ft, 24ft
Other surface finished painted red color RAL3000 ， Galvanized and then painted red color, black color painted, epoxy coated, anti-rust oiled , or bare no surface treatment
About surface finished the surface finished can be specified by customers
Product name Steel Pipe with grooved ends
Packging & Delivery
-
Min Order5 ton
Briefing
UL approved fire sprinkler pipe SCH40 sizes chart
Detailed
UL Approved Fire Sprinkler Steel Pipe Information
UL Approved Sprinkler Pipes SCH40 are approved by Underwriters Laboratories (UL) for use in fire sprinkler systems. The "SCH40" designation indicates that the pipe has a standard wall thickness according to the ASTM schedule system.
UL approval ensures that the sprinkler pipe meets the safety and performance standards set by UL for use in fire protection applications. This includes factors such as corrosion resistance, strength, and durability, as well as compliance with specific installation and performance requirements.
|
Commodity
|
Fire sprinkler ERW carbon steel pipes |
|
Usage | construction, building material, fire sprinkler steel pipeline | |
|
Size
|
1/2''-8'' (round hollow)
|
|
Wall thickness | 1.3mm-10mm | |
Length | 5.8m, 6m or cut into other length according to PI | |
Certificates international standard | ISO 9000-2001, UL certificate | |
Standards | ASTM A795, ASTM A53, GB/T3091, etc | |
|
Technique
|
Welded
|
|
Surface | Galvanized or Painted to prevent the rust | |
Pipe ends | Plain or threaded with sockets/coupling and plastic cap or grooved with caps | |
|
Packing
|
In bundles, or request.
|
|
Marking | As requested in PI, for example "UL LISTED YOUFA SCH10 / SCH40" | |
ASTM A795 ERW Carbon Steel Tube Standard Specifications Reference
NPS | DN | Outer Diameter(mm) | Schedule 10 | Schedule 40 | ||||
Wall Thickness (mm) |
Unit Weight (kg/m) | Test Pressure (kpa) | Wall Thickness
(mm) | Unit Weight
(kg/m) | Test Pressure (kpa) | |||
|
1/2"
|
15
|
21.3 |
-
|
- | - | 2.77 | 1.27 | 4800 |
|
3/4"
|
20
|
26.7 | 2.11 |
1.28 | 4800 | 2.87 | 1.69 | 4800 |
1" | 25 | 33.4 | 2.77 | 2.09 | 4800 | 3.38 | 2.50 | 4800 |
1-1/4" | 32 | 42.2 | 2.77 | 2.69 | 6900 | 3.56 | 3.39 | 6900 |
1-1/2" | 40 | 48.3 | 2.77 | 3.11 | 6900 | 3.68 | 4.05 | 6900 |
2" | 50 | 60.3 | 2.77 | 3.93 | 6900 | 3.91 | 5.45 | 6900 |
2-1/2" | 65 | 73 | 3.05 | 5.26 | 6900 | 5.16 | 8.64 | 6900 |
3" | 80 | 88.9 | 3.05 | 6.46 | 6900 | 5.49 | 11.29 | 6900 |
4" | 100 | 114.3 | 3.05 | 8.37 | 8300 | 6.02 | 16.09 | 8300 |
5" | 125 | 141.3 | 3.40 | 11.58 | 8300 | 6.55 | 21.79 | 8300 |
6" | 150 | 168.3 | 3.40 | 13.85 | 6900 | 7.11 | 28.29 | 8300 |
8" | 200 | 219.1 | 4.78 | 25.26 | 5500 | sch30 7.04 | 36.82 | 8300 |
10" | 250 | 273.1 | 4.78 | 31.62 | 4800 | sch30 7.8 | 51.05 | 6900 |
Pls don't hesitate to contact us if you need other sizes. | ||||||||
UL Approved ERW Carbon Steel Fire Sprinkler Pipes Surface and Pipe Ends

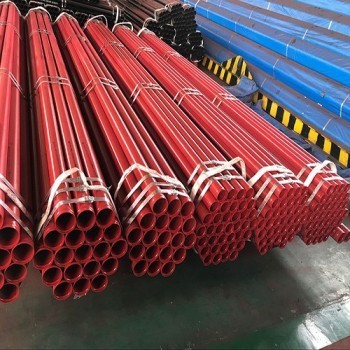

Surface: Painted Ral3000 or other color
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: Grooved with caps
Surface: Zinc coated 30um or above
Pipe Ends: NPT threaded with coupling and cap
Surface: Painted Ral3000 or other color
Pipe Ends: NPT threaded with coupling and cap
UL Approved ASTM A795 Fire Sprinkler Pipes Test and Quality Control
Chemical Composition |
for Type E (electric-resistance-welded pipe)
|
|||
|
C, Max, %
|
Mn, Max, % |
P, Max, %
|
S, Max, %
|
|
|
Grade A
|
0.25
|
0.95 |
0.035
|
0.035
|
|
Grade B
|
0.30
|
1.20 |
0.035
|
0.035
|
Mechanical Properties |
for thickness sch10 and sch40
|
||
|
Tensile strength, min [MPa]
|
Yield strength, min [MPa]
|
Elongation, min, %
|
|
|
Grade A
|
330
|
205
|
24
|
|
Grade B
|
415
|
240
|
24
|
Hydrotest:
The hydrostatic test shall be applied, without leakage
through the pipe wall, to each length of pipe.
Coating, Lengths, Dimensions:
During and after production, 4 QC staffs with more than 5 years experience inspect products in random.
