DN150 6INCH FIRE SPRINKLER PIPE PAINTED RED RAL3000
- FOB Price
US $790.010 - 25 ton
- group name
- Grooved End Steel Pipe
- Min Order
- 10 ton
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 25 Dec 2024 02:05:53 GMT
Paramtents
Technic Standard ASTM A53 , ASTM A795
Pipe Length 5.8m, 6m, 6.4m, 7.3m, 19ft, 20ft, 21ft, 24ft
Other surface finished painted red color RAL3000 ， Galvanized and then painted red color, black color painted, epoxy coated, anti-rust oiled , or bare no surface treatment
About surface finished the surface finished can be specified by customers
Product name Steel Pipe with grooved ends
Packging & Delivery
-
Min Order10 ton
Briefing

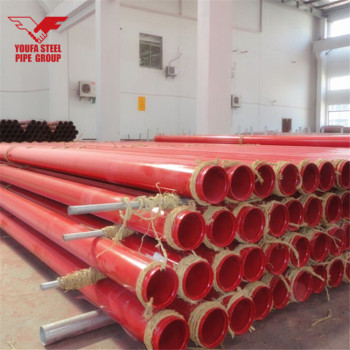

DN150 6INCH FIRE SPRINKLER PIPE WITH GROOVED ENDS PAINTED RED RAL3000
Detailed
1. The pipes diameter are usually 1/2, 3/4, 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6" and 8".
2. The thickness most used are sch10 and sch40.
3. YOUFA brand steel pipe has full sizes, and can be specified by customer on pipe thickness, surface finished and ends finished.
4. The MOQ for the fire sprinkler pipe is generally 5tons. Now contact us to get a price.
5. Pipe ends finished: Rolled Groove end, Slotted end.
The end is available for slotted accessories connected, such as slotted clamp, slotted elbow and tee.
Hollow Section Steel Pipe General Product Information
With more than 23 years experience of pipes production, Tianjin Youfa Steel Pipe Group has won wide praises from our customers for fine quality, full range of product specifications, competitive price and excellent after-sale service.
|
Commodity
|
ASTM A795 SCH10 ERW carbon steel pipe/grooved end pipe from YOUFA |
|
Usage | construction, building material, fire sprinkler steel pipeline | |
Zinc coating | Pre galvanized : 30-120g/m2 | Hot dipped galvanized : 220-480g/m2 |
|
Size
|
1/2''-4'' (round)
|
1/2''-8'' (round) |
Wall thickness | 1.3mm-2mm | 1.3mm-10mm |
Length | 5.8m, 6m or customized | |
Certificates international standard | ISO 9000-2001, UL certificate | |
Standards | EN39, ASTM A53, BS1387-85, GB/T3091-08, JIS-G3444, ISO65, BS1139 etc | |
|
Technique
|
Welded
|
|
Inspection | With hydraulic testing, eddy current and infrared test | |
Surface | Black, Galvanized or Painted to prevent the rust | |
Pipe ends | Plain/ beveled ends or threaded with sockets/coupling and plastic cap or grooved | |
|
Packing
|
In bundles, packed in woven bag; in loose; or request.
|
|
Shipment | 1) Container: 26 tons per container for thick wall thickness pipe.
20"container: the max pipe length 5.85 m without coupling, 5.8 m with coupling;
40"container: the max pipe length 11.8 m or 5.97 m in two rows.
2) Bulk carrier: no limits on pipe length. | |
Main market | Middle East, Africa, Asia and some European country and South America, Australia | |
Country of origin | China | |
Remark | 1. Payment terms : T/T, L/C
2. Terms of trade : FOB, CFR, CIF 3. Minimum order : 2 tons per size 4. Lead time : on or before 30 days . | |
Brand | YOUFA -TOP 500 CHINA | |
Youfa Carbon Steel Tube Producing Process
There are 78 round carbon steel pipes production lines in Youfa steel pipe group factories, and the annual production capacity is 8,200,000 tons.
ASTM A53 Grade A/B Schedule 40 Carbon Steel Tube Standard Specifications Reference
NPS | DN | Outer Diameter(mm) | Wall Thickness(mm) |
Unit Weight(kg/m) | Grade A Test Pressure(kpax100) | Grade B Test Pressure(kpax100) |
|
1/2"
|
15
|
21.3 |
2.77
|
1.27 | 48 | 48 |
|
3/4"
|
20
|
26.7 | 2.87 |
1.69 | 48 | 48 |
1" | 25 | 33.4 | 3.38 | 2.50 | 48 | 48 |
1-1/4" | 32 | 42.2 | 3.56 | 3.40 | 69 | 76 |
1-1/2" | 40 | 48.3 | 3.68 | 4.04 | 69 | 76 |
2" | 50 | 60.3 | 3.91 | 5.46 | 159 | 172 |
2-1/2" | 65 | 73 | 5.16 | 8.67 | 172 | 172 |
3" | 80 | 88.9 | 5.49 | 11.35 | 152 | 172 |
4" | 100 | 114.3 | 6.02 | 16.23 | 131 | 152 |
5" | 125 | 141.3 | 6.55 | 22.07 | 117 | 131 |
6" | 150 | 168.3 | 7.11 | 28.58 | 103 | 124 |
8" | 200 | 219.1 | 8.18 | 43.73 | 90 | 110 |
10" | 250 | 273.1 | 9.27 | 63.36 | 83 | 97 |
Pls don't hesitate to contact us if you need other sizes. | ||||||
Youfa Steel Pipe Test and Quality Control
YOUFA brand was affirmed as "Renowned Brand in China" by SAIC Trademark Bureau in March 2008.
Youfa brand ERW steel pipes, hot dip galvanized steel pipes and SSAW steel pipes have been awarded as "Famous Brand Product of Tianjin" by Tianjin Government for many consecutive years.
Youfa steel pipe production and sale, in three consecutive years, increased progressively, amounting to more than 1 million tons.
Youfa Brand Steel Pipe Production Range Details
|
Main Products
|
Size
|
Wall Thickness
|
Production Lines
|
Producing Capacity |
|
ERW steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
13
|
1,000,000 tons per yesr |
|
Hot-dipped galvanized steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
18
|
1,500,000 tons per year |
Square Rectangular steel pipe | 20x20--400x400mm,
20x40--400x600mm | 1.3mm--20mm | 10 | 800,000 tons per year |
Hot-dip galvanized
square / rectangular steel pipe | 20x20--200x200mm,
20x40--250x150mm | 1.5mm--7.5mm | 3 | 250,000 tons per year |
|
Oil casing pipe, SSAW steel pipe
|
219mm-2020mm
|
5.0mm--28mm
|
5
|
1,50,000 tons per year |
Steel-plastic complex
steel pipe | 1/2"--12" | 1.5mm--10.0mm | 9 | 100,000 tons per year |
