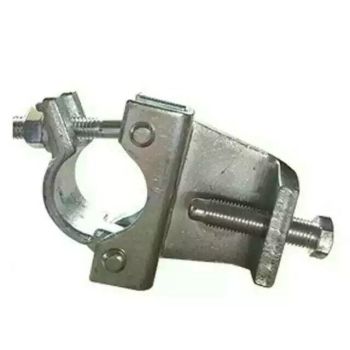

galvanized scaffold tube fittings pipe clamp for scaffolding
- group name
- Couplers and Clamps
- Min Order
- 1 piece
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 25 Dec 2024 02:34:34 GMT
Paramtents
Model LGJ20170821-5
Outer Diameter 1.5 inch
Wall thickness 1.0 mm - 4.0 mm
Length 6m in stock (or customized)
Surface galvanized
Zinc coating 200-500g/m2
Pipe ends plain ends( bevel, threaded or grooved)
Standard ASTM A53, BS1387, BS1139, EN39, EN10219 and so on
Application fluid transport or construction, fence posts
Packging & Delivery
-
Min Order1 piece
Briefing
Detailed
TIANJIN YOUFA STEEL PIPE GROUP CO., LTD
| BS EN39:2001 | |||||
|---|---|---|---|---|---|
| Outer Diameter | Wall Thickness | Weight | |||
| mm | Tolerance | mm | Tolerance max | kg/meter | Tolerance max |
| 48.3 | ±0.5mm | 3.2 | -10% | 3.6 | -7.50% |
| 4 | 4.4 | ||||
PRODUCTS DISPLAY
imensions,mass and tolerances according to EN39 / BS1139:
Dimensions
The specified outside diameter is 48.3MM and the specified wall thickness is 3.2MM for type 3 and 4.0MM for type 4;
Tolerances on dimensions
The tolerance on specified outside diameter is +/-0.5MM;
The tolerance on out of roundness is included in the diameter tolerance;
The tolerance on wall thickness is -10%;
The inside diameter of tubes shall allow insertion of agauge of diameter 37.7mm for aminimu length of 200mm;
Mass
The nominal mass per unit length of type 3 tube is 3.56kg/m and for type 4 tube 4.37kg/m
Tolerance on Mass
The mass deviation on a single tube shall notexceed -7.5% of the specified mass;
HOT SALE PRODUCTS
COMPANY PROFILE -- TIANJIN YOUFA STEEL PIPE GROUP
Tianjin Youfa International Trade Co. Ltd is one of the subsidiaries, which specialized in export trade.
Our company was founded on July 1, 2000, with headquarters located at the largest welded pipe production base in China - Daqiuzhuang Village, Tianjin City. We are a large scale steel pipe manufacturing enterprise producing many kinds of pipes showed in the following sheet.
HIGH QUALITY GUARANTEED
Our steel pipe production and sale, in three consecutive years, increased progressively, amounting to more than 1 million tons. Our YOUFA brand was affirmed as "Renowned Brand in China" by SAIC Trademark Bureau in March 2008. Our ERW steel pipes, hot-dip galvanized steel pipes and SSAW steel pipes have been awarded as "Famous Brand Product of Tianjin" by Tianjin Government for many consecutive years.
PRODUCTS TEST
YOUFA GROUP AT EXHIBITION
YOUFA GROUP MEET CLIENTS
We Tianjin Youfa Steel Pipe Group are looking forward to cooperate with you!!!
Pls don't hesitate to contact us if you are interested in our products!!!
