304L Stainless Steel Pipe
- group name
- Stainless Steel Pipe
- Min Order
- 5 ton
- brand name
- Youfa Steel Pipe Manufacturer
- model
- 304L Stainless Steel Pipe
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 25 Dec 2024 02:14:22 GMT
Paramtents
Material 304L
Nominal Pipe Sizes 1/2 inch to 40 inch
Thickness Sch5s, Sch10s, Sch20s, Sch40s
Standards ASTM A312
Packging & Delivery
-
Min Order5 ton
Briefing
304L stainless steel heat exchanger tubes, thin-walled stainless tube, stainless pipe for food, stainless steel fluid tubes.
Detailed

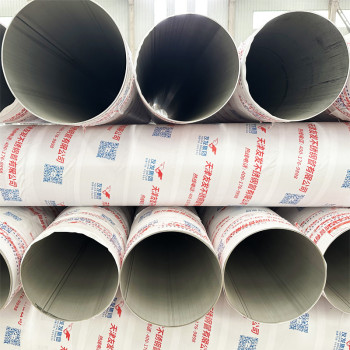

304L Stainless Steel Pipe Description
304L corresponds to the Chinese grade 00Cr19Ni10.
304L stainless steel pipe 18Cr-8Ni-low carbon, as a low-C 304 steel, has good corrosion resistance, heat resistance, low temperature strength and mechanical properties; good hot processing such as stamping and bending, no heat treatment hardening phenomenon. Under normal conditions, its corrosion resistance is similar to that of 304 steel, but after welding or stress relief, its resistance to intergranular corrosion is excellent; without heat treatment, it can also maintain good corrosion resistance, and the use temperature is -196℃~800℃. It is used in outdoor open-air machines in the chemical, coal, and petroleum industries with high requirements for resistance to intergranular corrosion, heat-resistant parts of building materials, and parts that are difficult to heat treat.
|
Commodity
|
round stainless steel tube and pipe
|
|
Diameter
|
DN15 TO DN1000 (21mm - 1016mm)
|
|
Thickness
|
1.65mm TO 26.20mm
|
|
Length
|
5.8meter/ 6.0meter/ 6.1meter or custimized
|
|
Material
|
Stainless Steel 304L
S30403 (American AISI, ASTM) |
Fluid conveying usage Standards | ASTM A312, ASTM A358, ASTM A790, ASTM A928, JIS G3459, JIS G3468, EN10217, JIS G3448, EN10312 GB/T12771, GB/T19228 |
Packing | Bundled wooden box or bag(According to customer's requirement) |
Payment Terms | 30%&70% T/T ; 100% LC AT SIGHT (others can be negotiated) |
Types of 304L Stainless Steel Tube Pipes | |||
1. Heat exchanger tubes | Performance characteristics: smooth inner wall, low water resistance, can withstand erosion of high water flow rate, after solution treatment, the mechanical properties and corrosion resistance of the weld and the substrate are basically the same, and the deep processing performance is excellent. | ||
2. Thin-walled stainless steel tubes | Use: Mainly used for direct drinking water projects and other fluid transportation with high requirements
Main features: long service life; low failure rate and water leakage rate; good water quality, no harmful objects will be precipitated into the water; the inner wall of the tube is not rusted, smooth, and has low water resistance; high cost performance, with a service life of up to 100 years, no maintenance required, and low cost; can withstand erosion of high water flow rate of more than 30m/s; open pipe laying, beautiful appearance. | ||
|
3. Food hygiene tubes
|
Use: milk and food industry, pharmaceutical industry, and industries with special inner surface requirements.
Process features: internal weld bead leveling treatment, solution treatment, inner surface electrolytic polishing |
||
|
4. Fluid pipe stainless steel pipe
|
Carefully manufactured stainless steel internal flat welded pipe, widely used in dairy products, beer, beverages, pharmaceuticals, biology, cosmetics, fine chemicals. Compared with ordinary sanitary steel pipes, its surface finish and inner wall are smooth and flat, the flexibility of the steel plate is better, the coverage is wide, the wall thickness is uniform, the precision is higher, there are no pitting, and the quality is good.
|
||
Advantages of 304L Stainless Steel
1. Excellent corrosion resistance:
The corrosion resistance of stainless steel 304L is much better than that of ordinary stainless steel, so it is easy to use in chemical processes.
2. Good low-temperature strength:
304L stainless steel still has strong strength and toughness at low temperatures, so it is widely used in low-temperature equipment.
3. Good mechanical properties:
304L stainless steel has high tensile strength and yield strength, and its hardness can be improved by cold working.
4. Excellent processing performance:
304L stainless steel is easy to process, weld and cut, and its surface finish is high.
5. No hardening after heat treatment:
304L stainless steel will not harden during heat treatment.
Stainless Pipe Production Lines
Stainless Pipe Packaging and Transportation
Stainless Pipe Certificates
FAQ
Are you trading company or manufacture?
Factory in Tianjin China. Youfa brand.
How long is your delivery time?
Generally it is 3-5 days if goods are in stock. or around 30days if the goods are not in stock and it is according to order requirement.
Do you provide samples ? is it free or extra ?
Yes, we could offer the sample arond 20cm for free, with the cost of freight paid by customer.
