NBR5580 hot dip galvanized steel pipe
- group name
- Hot Galvanized Steel Pipe
- Min Order
- 10 ton
- brand name
- Youfa Steel Pipe Manufacturer
- model
- NBR5580 galvanized steel pipe
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 21 Nov 2024 17:06:28 GMT
Paramtents
standard NBR 5580
zinc coating 210-275g/m2
grade Grade a/b/c Q195-Q235 Q355
Surface finish Galvanized
Packging & Delivery
-
Min Order10 ton
Briefing
NBR 5580 – DIN EN 10255 Carbon steel tubes and pipes for fluid conduction - Requirements and tests
Detailed
NBR 5580 Galvanized Steel Pipe Product Information
To ensure efficiency and quality of pipes, the Brazilian Association of Technical Standards, ABNT, published the Brazilian Standard – NBR 5580. The objective of the standard is to establish requirements for the manufacture and supply of carbon steel pipe, with longitudinal weld, with or without zinc coating, aimed at conducting various items such as water, gas, steam, among other non-corrosive fluids. The standard determines the dimensions, masses and protections for type pipes, as well as their manufacturing, coating and supply processes. It also defines the tests and inspections to which pipes are subjected. Similar standard: DIN EN 10255.
|
Specifications
|
External Diameter 1/2"-6" (21.3-165.1mm) ; Thickness 2,25mm to 5,60mm ( Classe Leve / Media / Pesada )
|
|
|
Products Name
|
galvanized steel pipe
|
|
Standards | NBR 5580, NBR 5590, ASTM A53,BS1387, EN10255, GB/T 13793-1992 | |
Materials | Q195,Q215,Q235,Q345,S235JR,S355J0 | |
|
Applications
|
Conduction networks for fluids, water, gas, compressed air, oil and steam
|
|
|
Color
|
Zinc coated carbon steel pipe
|
|
Design | OEM & ODM | |
Certification | ISO 9001:2008 certification; Youfa presents certificates of compliance with applicable standards, including test reports on pressure resistance, impact resistance and material integrity. | |
Free Sample | Yes | |
MOQ | 2 tons per size and 20 tons per order | |
Payment Terms | T/T or LC | |

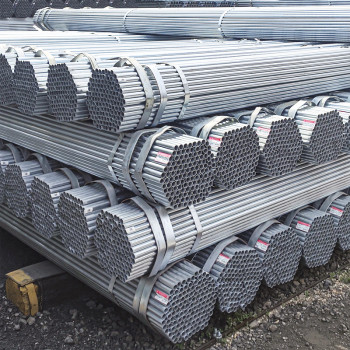

Packaging Details | in hexagonal seaworthy bundles packed by steel strips | |
Galvanized steel pipe Technical Specifications：
• Material: Hot-dip galvanized carbon steel;
• Coating: Zinc layer applied using the hot galvanizing process, with a minimum thickness in accordance with applicable standards;
• Length: Bars from 5.8 to 6 meters (or as required by the project)
• Wall Thickness: According to applicable NBR, ASTM or DIN standards;
Galvanized pipe Standards and Regulations:
NBR 5580 : Galvanized carbon steel tubes with or without seams for conveying fluids;
ASTM A53 / A53M : Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless;
DIN 2440 : Steel tubes, medium-weight, suitable for screwing;
DIN EN 10255 : Black, Galvanized or Painted, plain ends, threaded (NPT) or grooved Grooved as per ISO 6182-12 or ANSI/AWWA C606-15
Galvanized Pipes Performance Characteristics：
Working Pressure: The pipes withstand the working pressure for medium class piping of the NBR 5580 standard;
Corrosion Resistance: Due to the galvanization process, the gi pipes have high resistance to corrosion, suitable for use in drinking water supply systems;
Connectivity: The pipe allows secure and watertight connections with other system components (valves, fittings, etc.) through standard threads or other appropriate techniques.
Galvanized Steel Pipe Secondary Processing
Gi Pipe ends treatment:
Flat ends : Straight, burr-free cut ;
Beveled ends : Straight cut with edge machining at tube ends;
Threaded ends : Thread cutting BSP or (NBR 5580 pipes) or NPT (NBR 5590 grades A and B pipes) according to the pipe standard; threads
protected with anti-corrosive oil and plastic caps ;
Grooved ends : Grooved ends are manufactured with roll grooved ends, for use in transport lines with rigid or flexible cold connections, conferring agility, ease, and versatility in installation.
Galvanized Steel Pipe Test and Quality Control
YOUFA Galvanized steel pipes cover one-third of the Chinese market
How does Youfa guarantee galvanized pipe quality ?
1. Youfa factories source their raw materials for manufacturing steel pipes from well-established and reputable Chinese enterprises such as HBIS, Shougang, Baotou Steel, Xintiangang, Jinxi Steel, and others.
2. Youfa Group has 4 labs with CNAS certificates in our own factories. We promise that before the goods leave the factory, there will be professional quality inspection personnels to conduct on-site inspections of materials, specifications, etc., and take pictures and archive them.
3. During the cargo transportation process, we take photos to record the loading status of the goods.
4. Youfa hot galvanized steel pipes are certified by CE, UL, ISO 9001, ISO 14001.
Youfa Steel Pipe Company Information
Tianjin Youfa Steel Pipe Group Company was founded on July 1st ,2000,with the headquarters located at the largest steel pipe production base in China-Daqiuzhuang Village, Tianjin City, and it is the largest steel pipe manufacturing enterprise producing many kinds of steel pipes in the world. 20 years focused on quality which is the life of the enterprise.
Youfa brand steel pipes have been successfully applied to Three George Project, Pudong International Airport, Capital International Airport, Beijing Olympic Stadium, Shanghai World Expo Exhibition Hall, Jiaozhou Bay Cross-sea Bridge, the tallest building in China-117 Building in Tianjin, Tian'anmen Parade Reviewing Stand, Shanghai Disneyland Park and other national priority projects. YouFa has been recognized as No.1 brand in the industry.
ERW carbon steel pipe
Square and Rectangular steel pipe
Galvanized square steel pipe
Spiral welded steel pipe
|
Main Products
|
Size
|
Wall Thickness
|
Production Lines
|
Producing Capacity |
|
ERW steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
13
|
1,000,000 tons per yesr |
|
Hot-dipped galvanized steel pipe
|
1/2" -- 8"
|
1.5mm--10.0mm
|
18
|
1,500,000 tons per year |
Square Rectangular steel pipe | 20x20--400x400mm,
20x40--400x600mm | 1.3mm--20mm | 10 | 800,000 tons per year |
Hot-dip galvanized
square / rectangular steel pipe | 20x20--200x200mm,
20x40--250x150mm | 1.5mm--7.5mm | 3 | 250,000 tons per year |
|
Oil casing pipe, SSAW steel pipe
|
219mm-2020mm
|
5.0mm--28mm
|
5
|
1,50,000 tons per year |
Steel-plastic complex
steel pipe | 1/2"--12" | 1.5mm--10.0mm | 9 | 100,000 tons per year |
Cooperation with Youfa Steel Pipe Company
Customer & Exhibition cooperation:
Favorable Comment
Best steel pipe for liquid or oil or gas transfer/construction fastener Plastic plugs in both ends.Two tags on each bundle/Wrapped in waterproof paper/PVC sleeve according to customer ' s requirement.
