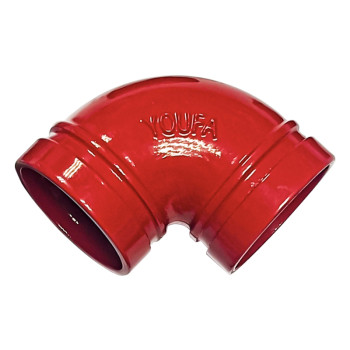

Red Painted 90 Degree Grooved Elbow
- group name
- Grooved Fittings
- Min Order
- 500 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Painted 90 Degree Elbow
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Tue, 04 Nov 2025 16:30:37 GMT
Paramtents
Application Fire sprinkler steel pipeline
Connection Rigid Coupling or Flexible Coupling
Material Carbon steel
Surface treatment Red painting
Packging & Delivery
-
Min Order500 piece
Briefing
Ductile iron grooved pipe elbows for fire protection systems and water delivery systems
Detailed
Groove Fittings Elbow Technical Parameters
| MATERIAL | Carbon Steel |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn | |
| STANDARD | ASTM / JIS / DIN / BS / GB |
| ELBOW DEGREE | 45 degree, 90 degree, 180 degree |
SURFACE | Red Paint, Blue Painted |
SIZE | 1/2"-48"(Dn15-Dn1200) |
CONNECTION | Rigid couplings, flexible couplings, mechanical tees and grooved flanges |
CERTIFICATE | ISO UL FM |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Steel Pipe Fitting Elbow Sizes
90° Grooved Elbow Size Chart | |
| Norminal Size (mm/inch) | Outside Diameter (mm) |
| 50 (2) | 60.3 |
| 65 (2-1/2) | 76.1 |
| 65 (3) | 88.9 |
| 100 (4) | 108 |
100 (4) | 114.3 |
125 (5) | 133 |
125 (5) | 139.7 |
150 (6) | 165.1 |
200 (8) | 219.1 |
250 (10) | 273 |
300 (12) | 323.9 |
Groove Pipe Fittings Application
As an advanced pipe connection method, grooved pipe fittings can be installed openly or buried, with both rigid joints and flexible joints. Therefore, it has a wide range of applications. It can be used for fire water systems, air conditioning hot and cold water systems, water supply systems, petrochemical pipeline systems, thermal power and military pipeline systems, sewage treatment pipeline systems, etc.
