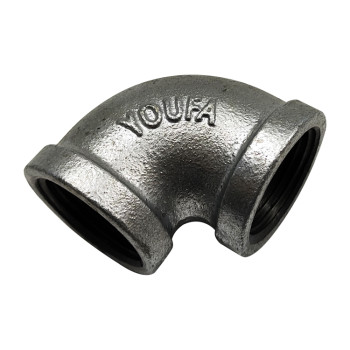

Galvanized Pipe Fittings 90° Equal Elbow
- group name
- Malleable Iron Fittings
- Min Order
- 500 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- 90 Equal Galvanized Elbow
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Tue, 04 Nov 2025 10:31:22 GMT
Paramtents
Surface Galvanized
Special Galvanized Elbow Inner Lining Plastic Pipe Fittings
Material Malleable Iron
Suitable Applications Water, Oil, Gas, Petro-Chemical
Other Types of Galvanized Pipe Fittings Tee, Reducer, Plug, Cap, Union, Nipple, Coupling..
MOQ 500 Units
Packging & Delivery
-
Min Order500 piece
Briefing
90 Degree Galvanized Equal Elbow for water, gas delivery pipeline
Detailed
Galvanized Steel Structural Pipe Fitting Elbow Technical Parameters
| MATERIAL | Carbon Steel |
| ASTM, A234WPB, A234WPC, A420WPL6 ,Q235,10#, A3, Q235A, 20G,16Mn | |
| STANDARD | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
| ELBOW DEGREE | 90 degree |
SURFACE | Galvanized Zinc Coated |
SIZE | 1/2"-6"(Dn15-Dn150) |
SHAPE | Equal |
CONNECTION | Female Threaded, Male Threaded |
CERTIFICATE | ISO UL Listed FM Approved |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Galvanized Elbow Steel Pipe Fitting Size Chart
90° Galvanized Elbow Size Chart | |
| Norminal Size (mm/inch) | A |
| 15 (1/2) | 27 |
20 (3/4) | 32 |
25 (1) | 37 |
32 (1-1/4) | 44.5 |
40 (1-1/2) | 48.5 |
50 (2) | 57 |
| 65 (2-1/2) | 68.5 |
| 80 (3) | 77.5 |
| 100 (4) | 96.5 |
150 (6) | 129 |
Galvanized Steel Pipe Fitting Application
Elbows are essential fittings in piping systems, used to change the direction of the flow.
Equal Elbow is equal diameter elbow to connect two pipes of the same diameter at a right angle (90 degrees). It is commonly used in various applications where a change in direction is needed without altering the pipe size. For example, in HVAC systems, plumbing, and industrial piping, equal diameter elbows help maintain consistent flow and pressure.
