Galvanized Fittings Threaded Straight Tee
- group name
- Malleable Iron Fittings
- Min Order
- 500 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Galvanized Threaded Straight Tees
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Fri, 04 Apr 2025 09:34:15 GMT
Paramtents
Surface Galvanized
Special Galvanized Elbow Inner Lining Plastic Pipe Fittings
Material Malleable Iron
Suitable Applications Water, Oil, Gas, Petro-Chemical
Other Types of Galvanized Pipe Fittings Elbow, Reducer, Plug, Cap, Union, Nipple, Coupling
MOQ 500 Units
Packging & Delivery
-
Min Order500 piece
Briefing
Equal Galvanized Fittings Threaded Straight Tee for water, gas delivery pipeline
Detailed

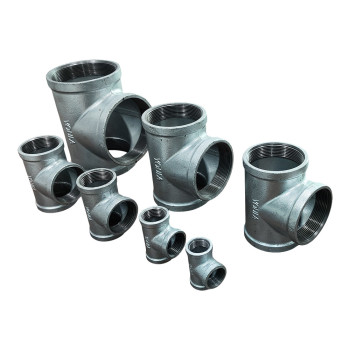

Galvanized Thread Straight Tee
Threaded Straight Tees have the same size openings, which is a T-shaped pipe fitting with two outlets connected to the main line at a 90 degree angle. The branched end connects the threads to either male or female threads.
When using a tee fitting, a male NPT pipe would typically connect to a female NPT tee. This ensures a proper fit and seal.
Galvanized Steel Fitting Tee Technical Parameters
| MATERIAL | Malleable Iron |
| STANDARD | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
| TYPE | 3 way steel pipe fitting |
SURFACE | Galvanized Zinc Coated |
HOT SALE GALVANIZED STEEL PIPE FITTINGS SIZE | Dn15 1/2 inch galvanized steel pipe fittings; Dn50 2 inch galvanized steel pipe fittings; Dn80 3 inch galvanized steel pipe fittings; Dn100 4 inch galvanized steel pipe fittings; Dn150 6 inch galvanized steel pipe fittings |
SHAPE | Equal |
CONNECTION | Female Threaded, Male Threaded |
CERTIFICATE | ISO UL Listed FM Approved |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Galvanized Steel Pipe Fitting Dimensions
Threaded Galvanized Tee Size Chart | |
| Norminal Size (mm/inch) | A |
| 15 (1/2) | 27 |
20 (3/4) | 32 |
25 (1) | 37 |
32 (1-1/4) | 44.5 |
40 (1-1/2) | 48.5 |
50 (2) | 57 |
| 65 (2-1/2) | 68.5 |
| 80 (3) | 77.5 |
| 100 (4) | 96.5 |
150 (6) | 129 |
Galvanized Tee Pipe Fitting Application
Galvanized tee, also known as tee pipe, is a short pipe with a lateral outlet used to direct fluid from one pipe to two other pipes.
Widely used in water pipes, gas pipelines, HVAC systems and other fields, and can effectively guide the flow of fluids.
