Threaded Galvanized Straight Steel Pipe Coupling
- group name
- Malleable Iron Fittings
- Min Order
- 500 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Threaded Galvanized Straight Steel Pipe Coupling
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Fri, 04 Apr 2025 09:27:19 GMT
Paramtents
Surface Galvanized
Special Galvanized Elbow Inner Lining Plastic Pipe Fittings
Material Malleable Iron
Suitable Applications Water, Oil, Gas, Petro-Chemical
Other Types of Galvanized Pipe Fittings Elbow, Reducer, Plug, Cap, Union, Nipple, Coupling
MOQ 500 Units
Packging & Delivery
-
Min Order500 piece
Briefing

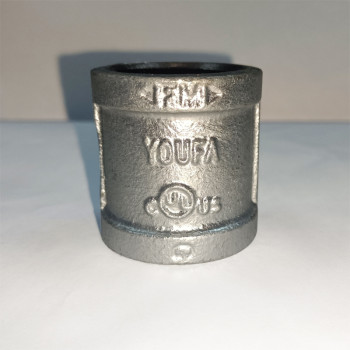

Female Threaded Galvanized Coupling is used to connect two sections of male threaded galvanized steel pipes in a straight line.
Detailed
Galvanized Thread Couplings
Threaded Galvanized Steel Pipe Coupling is widely used in both residential and industrial settings due to its reliability and ease of use. Both ends of the coupling have internal threads that match the external threads of the pipes being connected, to join two pipes of the same diameter in a straight line without changing direction.
Galvanized Threaded Coupling Technical Parameters
| MATERIAL | Malleable Iron |
| STANDARD | EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 |
| TYPE | steel pipe straight connectors |
SURFACE | Galvanized Zinc Coated |
HOT SALE GALVANIZED STEEL PIPE FITTINGS SIZE | Available in various sizes to match standard pipe diameters (e.g., 1/2", 3/4", 1", etc.). Dn15 1/2 inch steel pipe fittings; Dn50 2 inch steel pipe fittings; Dn80 3 inch steel pipe fittings; Dn100 4 inch steel pipe fittings; Dn150 6 inch steel pipe fittings |
SHAPE | Equal |
CONNECTION | Female Threaded |
CERTIFICATE | ISO UL Listed FM Approved |
PACKAGE | 1/2" - 2" in cartons; Above 2" in wooden cases. |
Galvanized Steel Pipe Coupling Types
Thread Galvanized Coupling Size Chart | |
| Norminal Size (mm/inch) | L |
| 15 (1/2) | 35 |
20 (3/4) | 38 |
25 (1) | 44 |
32 (1-1/4) | 49 |
40 (1-1/2) | 53 |
50 (2) | 63 |
| 65 (2-1/2) | 72 |
| 80 (3) | 77 |
| 100 (4) | 91 |
150 (6) | 118 |
Galvanized Coupling Applications
Commonly used in plumbing, water supply, gas lines, and industrial piping systems.
Galvanized Pipe Fittings Delivery
