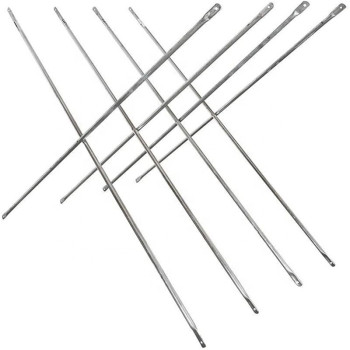

Cross Braces
- group name
- Frame Scaffolding
- Min Order
- 200 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Cross Braces
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Tue, 04 Nov 2025 16:26:46 GMT
Paramtents
Coating Painted or Galvanized
MOQ 200 Sets
Material Carbon steel q235 q195
Packging & Delivery
-
Min Order200 piece
Briefing
Cross brace in Mason Frame is to enhance the structural stability of the scaffold.
Detailed
Cross brace in Mason Frame is to enhance the structural stability of the scaffold by connecting the frame components horizontally and vertically to form a rigid triangular support system, effectively dispersing loads and preventing frame distortion or lateral displacement. Compared to the rigid connection of traditional scaffolding, Mason Frame's cross support design is lighter and suitable for its modular narrow structure, making it easy to disassemble and assemble quickly while maintaining high strength, especially suitable for narrow or complex construction scenarios.
| A | B | C | Weight |
| 1524 mm/ 5' | 812.8 mm/ 32" | 1727.2 mm/ 5'8" | 4.36 kg / 9.6 lbs |
| 1524 mm/ 5' | 1219.2 mm/ 48" | 1955.8mm/ 6'5" | 4.50 kg / 9.92 lbs |
| 2133.6 mm/7' | 812.8 mm/ 32" | 2159 mm/ 7'1" | 5.60 kg / 12.34 lbs |
| 2133.6 mm/7' | 1219.2 mm/ 48" | 2463.8 mm/ 8'1" | 5.70 kg / 12.56 lbs |
3048 mm/ 10' | 812.8 mm/ 32" | 3149.6 mm/ 10'4" | 7.50 kg /16.53 lbs |
3048 mm/ 10' | 1219.2 mm/ 48" | 3276.6 mm/ 10'9" | 7.81 kg /17.2 lbs |
| A | B | C | Weight |
| 1524 mm/ 5' | 1219.2 mm/ 4' | 1951.74 mm/76.84" | 4.75 kg / 10.47 lbs |
| 1524 mm/ 5' | 914.4 mm/ 3' | 1777.24 mm/69.97" | 4.04 kg / 8.9 lbs |
| 2133.6 mm/7' | 1219.2 mm/ 4' | 2457.45 mm/96.75" | 5.82 kg / 12.83 lbs |
| 2133.6 mm/7' | 914.4 mm/ 3' | 2321.31mm/91.39" | 5.63 kg / 12.4 lbs |
3048 mm/ 10' | 1219.2 mm/ 4' | 3282.7mm/129.24" | 7.85 kg /17.3 lbs |
3048 mm/ 10' | 914.4 mm/ 3' | 3182.1mm/125.28" | 7.63 kg /16.8 lbs |
