Steel Prop Tripod
- group name
- Steel Prop
- Min Order
- 200 piece
- brand name
- Youfa Steel Pipe Manufacturer
- model
- Tripod
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Fri, 04 Apr 2025 09:34:15 GMT
Paramtents
Type Tripod
Application Steel Props Tripod
Material Carbon Steel
Advantage Stable, Flexibility
MOQ 200set
Surface treatment Galvanized Zinc Coated
Performance High Strength Scaffolding System
Packging & Delivery
-
Min Order200 piece
Briefing

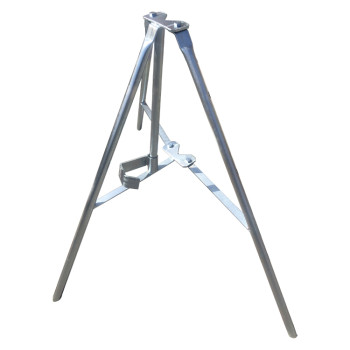

Galvanized Steel Props Tripod gives a stable support to props.
Detailed
Steel Prop Tripod Usage
Stable support: provides a stable base for steel props to prevent tilting or displacement.
Distributed load: evenly transfer the weight of the supporting structure to the ground, enhancing overall stability.
Adjust height: Through adjustable design, adapt to different construction needs and ensure the horizontal alignment of the support system.
Safety protection: Reduce safety risks caused by unstable support during the construction process.
Steel Prop Tripod Fittings Size
Steel Prop Tripod Accessories | Diameter (mm) | Thickness (mm) | Length (mm) | Supporting Height (mm) |
| Supporting Base | 60 | 5 | 137 | 680 or 800 |
| Fixed Pedestal | 30 | 8 | 325 | |
| Removable Pedestal | 30 | 8 | 334 | |
Brace Pipe | 32 | 1.8 | 462 | |
| Pipe with Hook | 48 | 3 | 80 | |
| Hook | 60 | 6 | 225 | |
Supporting Leg | 25 | 1.8 | 1015 | |
Stabilized Leg | 25 | 1.8 | 1005 | |
Surface Treatment | Painted or Galvanized | |||
