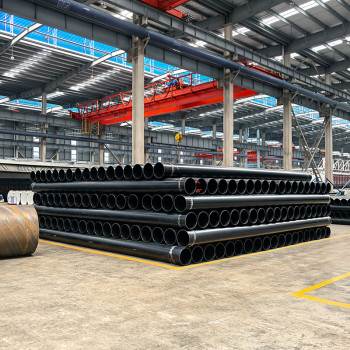

Steel Wire Mesh Reinforced Polyethylene Composite Pipe
- group name
- HDPE Pipe and Fittings
- Min Order
- 10000 piece
- brand name
- Youfa Steel Pipe Manufacturer
- Nearest port for product export
- Tianjin Port, Shanghai Port,etc.
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Mon, 03 Nov 2025 20:28:52 GMT
Paramtents
Color Black
Material HDPE and steel
Usage Water transportation
Packging & Delivery
-
Min Order10000 piece
Briefing
Steel wire mesh reinforced polyethylene composite pipe is a new type of reinforced composite pipe with HDPE pipe as the base.
Detailed
Steel Wire Mesh Composite PE Pipe Product Introduction

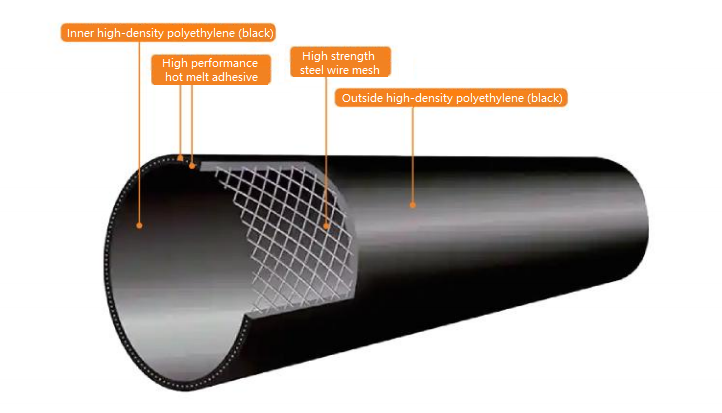

Steel wire mesh reinforced polyethylene composite pipe uses high-density polyethylene (HDPE) pipe as the base pipe and high-strength steel wire coated with adhesive resin to form a steel wire mesh skeleton formed by cross-spiral winding as the reinforcement. High-performance hot melt adhesive is used to tightly bond the steel wire mesh reinforcement to the inner and outer layers of the steel wire mesh reinforced polyethylene composite pipe, forming a new type of three-in-one reinforced composite pipe.
The steel wire mesh reinforced polyethylene composite pipe, with its unique product structure, endows the pipe with high rigidity and corrosion resistance, effectively avoiding the defect of easy delamination between the metal reinforcement layer and the plastic layer. The structure can be optimized to meet customers' needs for different pressure bearing capacities and water fluxes of the same specification product. This product has high production efficiency, excellent cost-effectiveness, light weight, and easy transportation and installation, making it an ideal choice for buried fire main pipelines. It is widely used in industries such as municipal engineering, civil construction, pharmaceutical and chemical industries, agricultural gas and coal chemical industries, and has a very broad market prospect.
Steel Wire Mesh Composite PE Pipe Product Features
Steel wire mesh reinforced polyethylene composite pipes not only have anti-corrosion and wear-resistant properties, but also have a long service life; Smooth inner wall without scaling, low friction coefficient; Lightweight transportation and convenient construction; In addition to being environmentally friendly and hygienic, and used for safe and reliable water supply, it also has the following characteristics:
High compressive strength
Good resistance to creep
Combination of rigidity and flexibility
Good dimensional stability and low linear expansion coefficient
Overcoming the defect of easy delamination in metal plate reinforced composite pipes
Good traceability
Strong conveying capacity
Convenient and fast construction
Steel Wire Mesh Composite PE Pipe Applications
Buried pipelines or indoor pipelines
1. Municipal engineering:
Pipelines for urban water supply, fire protection, gas, and natural gas transportation.
2. Industrial Engineering:
Process pipes and discharge pipes for conveying corrosive gases, liquids, and solid powders in food and medicine, petrochemical thermal and electrical engineering, metallurgy and mining.
3. Agricultural and forestry irrigation:
Water pipelines for agricultural irrigation and landscaping.
4. Highway:
Underground drainage pipes and conduits for transporting wires and cables.
5. Ocean Engineering:
Seawater transportation, submarine pipelines, and optical (electrical) cable conduits, etc.
Steel Wire Mesh Composite PE Pipe Specification
GB/T 32439-2015 Standard
Sizes: OD DN50mm to DN600mm, Legth 6m, 9m or 12m.
Pressure: PN1.0MPa, 1.6MPa, 2.0MPa, 2.5MPa, 3.5MPa
